CCT stands for Correlated Colour Temperature. It measures the colour appearance of a light source, described in Kelvin (K), indicating whether the light looks warm or cool.

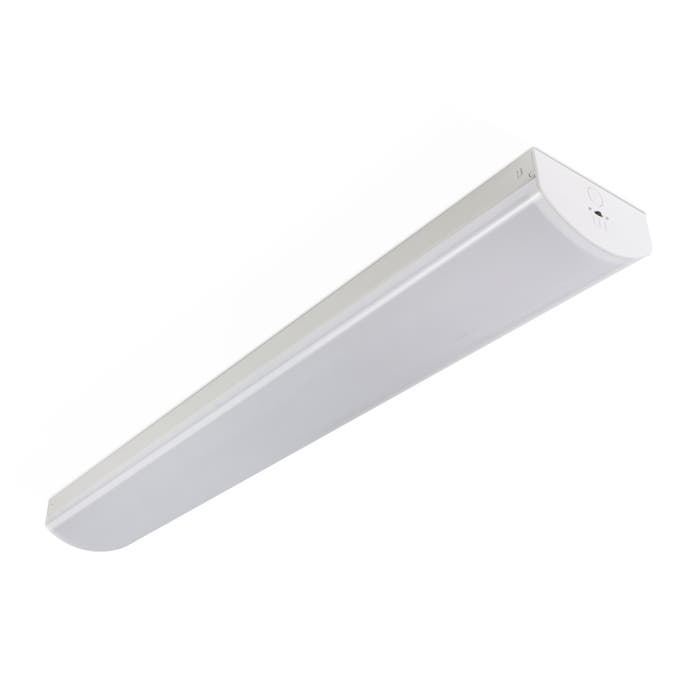

Bright Source 5ft 38w Low Glare Twin LED Batten Fitting - CCT - Emergency & Sensor

Skip to the beginning of the images gallery

Key Features

Average Life - 50,000 Hours
5 Year Warranty
6960 Lumen Light Output
Switchable Colour Temperature
Dimensions - 1500x171x 82mm

Bright Source 5ft 38w Low Glare Twin LED Batten Fitting - CCT - Emergency & Sensor

Q: What Is LED Emergency Lighting and How Does It Work?

LED emergency lighting is a safety lighting system designed to activate automatically during a power failure. It uses energy-efficient LED technology and is typically powered by a battery backup to provide illumination in emergency situations, ensuring safe evacuation and compliance with safety regulations.

Q: What Are the Benefits of LED Emergency Lights Compared to Traditional Non-LED Options?

LED emergency lights offer superior energy efficiency, longer lifespan, lower maintenance costs, and improved brightness compared to traditional non-LED options. They also provide instant illumination, enhanced durability, and better environmental benefits.

Q: Where Should LED Emergency Lights Be Installed?

LED emergency lights should be installed in key areas to ensure safe evacuation during power failures. These include exit routes, stairwells, corridors, fire exits, large open areas, and high-risk workspaces. Regulations such as the BS 5266-1:2016 emergency lighting code should be followed for correct placement and compliance.

Q: How Long Do LED Emergency Lights Stay On During a Power Outage?

LED emergency lights typically stay on for 3 hours during a power outage, though some models may last 1 to 3 hours depending on the battery capacity and type.

Q: What Is an LED Batten and How Does It Work?

An LED batten is a slim, linear light fitting that uses LED technology as a modern alternative to traditional fluorescent tubes. It offers efficient, long-lasting, and high-quality lighting for various indoor and outdoor applications.

Q: What Are the Benefits of LED Battens Compared to Fluorescent Fittings?

LED battens are more energy-efficient, longer-lasting, and environmentally friendly than fluorescent fittings. They also offer instant light, lower maintenance, and improved durability.

Q: How Do I Choose the Right Size and Wattage LED Batten?

Choose the right LED batten by considering the size of the space, the brightness you need, and the type of application. Larger areas or tasks requiring clear visibility will need higher wattage and longer fittings.

Q: Are LED Battens Easy to Install?

Yes, LED battens are generally designed for straightforward installation, but for safety and compliance, all electrical work should be carried out by a qualified electrician.

Q: Can LED Battens Be Used Outdoors or in Damp Areas?

Yes, LED battens can be used outdoors or in damp environments, but only if they have a suitable IP (Ingress Protection) rating, such as IP65 or higher.

Year

Warranty

In stock

SKU

17449LSO

Quick Code

453516

Emergency lighting automatically activates during a power outage, providing essential visibility and safety. It’s ideal for commercial or public spaces where regulations require reliable backup lighting in case of emergencies.

CCT lighting lets you select from warm, neutral, or cool white tones. In many products, the colour temperature is chosen before fitting, while in others like mirrors, it can be adjusted anytime to suit your needs.

IP20-rated lights are protected against solid objects larger than 12mm but offer no water protection. They’re suitable for dry, indoor environments such as bedrooms, lounges, or offices where moisture exposure is minimal.

Delivery
Fastest delivery: Tomorrow, Monday 23rd Jun
Standard delivery: Tuesday 24th Jun

Order in the next ... Details

Key Features

Average Life - 50,000 Hours
5 Year Warranty
6960 Lumen Light Output
Switchable Colour Temperature
Dimensions - 1500x171x 82mm

Details

Looking for an efficient, versatile lighting solution for educational spaces? Look no further! Our LED 3CCT Education Batten Light is designed to meet your needs with precision. Its innovative clip-on fascia enables quick and hassle-free installation, eliminating time-consuming setups.

This batten light boasts exceptional efficiency, delivering a powerful 120 lumens per watt while keeping energy consumption to a minimum. Its flexible cable mounting allows for adjustments to suit various applications, making it a highly versatile lighting choice. Designed as a universal replacement for 95% of all fluorescent battens, upgrades are a breeze, and the push-fit connectors simplify installation.

Crafted with a rugged steel body, this batten light not only enhances durability but also provides exceptional rigidity. Plus, with an outstanding colour rendering index (CRI) of over 80, it ensures true-to-life colors, making it perfect for educational environments where accurate representation matters. Illuminate your educational spaces with confidence and efficiency; upgrade to the LED 3CCT Education Batten Light today to transform your learning environment into a well-lit, productive hub.

This LED batten fitting comes complete with PIR movement sensor which can be adjusted between 30s/3min/5min/8min before switching the fitting off if there is no movement which helps save money on energy bills. The sensor can also be used to turn the fitting on when the room becomes too dark(>10lux). 6-8 metre sensing distance.

This Emergency version is integrated into the body of the education batten. These fittings come complete with LED Emergency inverter, rechargeable emergency battery stick and Green LED indicator.

Dimmable Options Explained:

DALI: The Dali dimmable LED driver, enabling this batten to be dimmed via a PC or Wall Interface system. It can be dimmed as a group or singular. This also enables the fitting to work on a corridor function and have options for pre-set scenes.

DSI: The driver receives a digital signal which tells it how to respond. The advantage of digital dimming is that fixtures are addressable. You can also have many more different levels of light output.

General Characteristics
Wattage [W] 58
Voltage [V] 220 – 240v
Lumens [lm] 6960
IP Rating [IP] 20
Avg. Life [hrs] 50000
Part code 233817

Specification Table

SPECIFICATION TABLE

Wattage

38w

Manufacturer Part Number

FFB-EDLED25-58W-CCT-BS-EM3-DIM-S

Brand

Bright Source

Lumens

6960

Colour Temperature

CCT - 3000k, 4000k, 6000k

Special Features

Emergency, CCT, IP20

Average Lifespan (Hours)

50,000

IP Rating

IP20

IK Rating

IK08

CRI

Beam Angle

120

Energy Efficiency Rating

Warranty

1 year (4 years extended warranty with registration)

Equivalent Conventional Lamp Power

2x58w

Product Size

5ft

Operating Temperature

-20 - 50 Degrees

Product Finish

Glossy White

Operating Mode

Integrated LED driver

PRODUCT ATTACHMENTS

Delivery & Returns

UK Mainland:

2–3 Day Delivery: £3.95 for orders under £65, free for orders over £65
2–3 Day Courier Delivery: £7.95 (under £65 only)
Next Day Delivery: £4.95 (any order value)
Next Day Courier Delivery: £9.95 (any order value)

Note: Services marked with an asterisk () are unavailable for items over 3 feet in length.*

Non-Mainland UK:

Standard delivery starts at £3.95 for small orders
Courier prices range from £14.95 to £37.95 depending on postcode zone and order size

International Delivery:

Shipping costs are tailored to order size, weight, and location
Email: sales@lampshoponline.com for a personalised quote
Customs fees/duties are the buyer’s responsibility

Terms:

Orders placed before 3 PM (Mon–Fri) are dispatched the same day
No weekend or public holiday deliveries

Product Questions (10)

Customer Questions

What is CCT?

Correlated Colour Temperature (CCT) refers to the hue and tone of light emitted from a source, expressed in Kelvin (K). It helps determine the “warmth” or “coolness” of the light:Warm White (2700K - 3000K): Creates a cosy, yellowish glow, ideal for ...

What Is LED Emergency Lighting and How Does It Work?

LED emergency lighting is an essential safety feature in commercial, industrial, and residential buildings. It provides illumination when the main power supply fails, helping to guide occupants to exits and prevent accidents. How It Works: Normal Operation...

What Are the Benefits of LED Emergency Lights Compared to Traditional Non-LED Options?

LED emergency lights are a modern upgrade from traditional non-LED emergency lighting, such as fluorescent and incandescent options.Here’s why they are the preferred choice:Energy Efficiency – LEDs consume significantly less power than fluorescent or...

Where Should LED Emergency Lights Be Installed?

LED emergency lighting is crucial for safety in case of power cuts or emergencies. Proper placement is essential to ensure visibility and guidance in an emergency. The main locations for installation include:Escape Routes & Exits – Place lights ...

How Long Do LED Emergency Lights Stay On During a Power Outage?

Most LED emergency lights are designed to operate for a minimum of 3 hours, which complies with UK fire safety regulations. However, the duration can vary depending on several factors:Battery Capacity – Higher capacity batteries last longer. Light ...

What Is an LED Batten and How Does It Work?

An LED batten is a type of light fitting designed to deliver uniform, high-efficiency illumination in a wide range of environments. It typically consists of a linear housing containing integrated LED chips or strips, with a diffuser to spread light ...

What Are the Benefits of LED Battens Compared to Fluorescent Fittings?

LED battens offer several clear advantages over traditional fluorescent tube fittings, making them a superior lighting choice in almost every application.Here’s a direct comparison of the key benefits:Energy Efficiency: LED battens use up to 60% less...

How Do I Choose the Right Size and Wattage LED Batten?

Selecting the right LED batten comes down to matching the fitting to your space and lighting needs. Here are the main factors to consider:Room Size & Ceiling Height: Larger rooms or spaces with high ceilings typically need longer battens (like 5ft...

Are LED Battens Easy to Install?

LED battens are designed to be as user-friendly as possible, with many models featuring simple surface-mount designs, pre-wired connectors, and supplied fixing kits. This makes them quicker to install compared to older fluorescent fittings, which often...

Can LED Battens Be Used Outdoors or in Damp Areas?

LED battens are a popular choice for outdoor and damp environments, but not all models are suitable for these conditions. To ensure safe and reliable operation, it’s important to choose a batten with the correct IP rating. IP ratings indicate how well...
